Mazda CX-5 Service & Repair Manual: Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (Iat) Sensor No.2 Removal/Installation
NOTE:
-

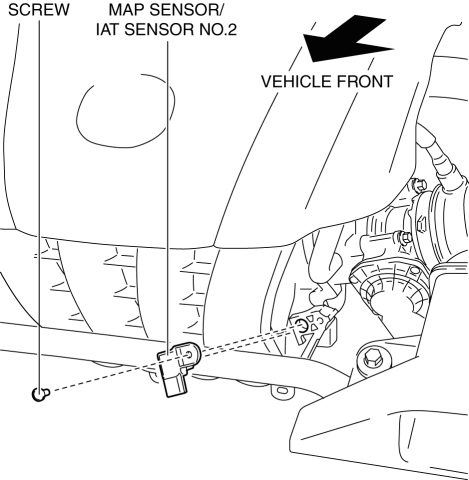

Because the IAT sensor No.2 is integrated in the MAP sensor, replacing the IAT sensor No.2 includes replacement of the MAP sensor/IAT sensor No.2.
1. Disconnect the negative battery cable..
2. Disconnect the MAP sensor/IAT sensor No.2 connector.
3. Remove the MAP sensor/IAT sensor No.2.
4. Install in the reverse order of removal.
