Mazda CX-5 Service & Repair Manual: Rear Axle
Purpose, Function
-
An angular ball bearing, with a low rotational resistance, has been adopted, improving driveability.
-
A unit bearing that does not require pre-load setting has been adopted, improving serviceability.

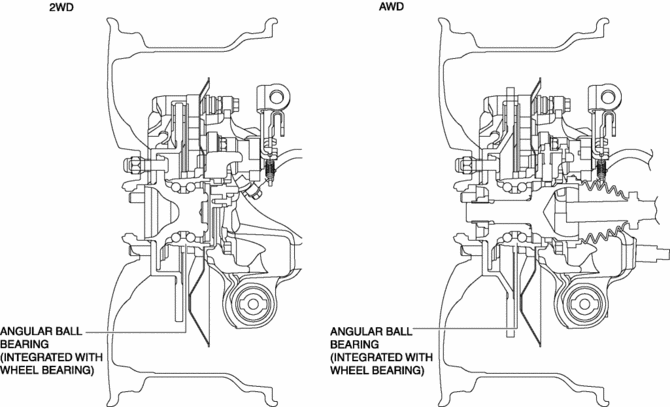

Cross-Sectional View
Rear Suspension
...
Rear Coil Spring Removal/Installation
WARNING:
Be careful not to allow the coil spring to fly off when removing/installing
the coil spring. Otherwise, the coil spring could fly off and cause serious
injury or death, or dam ...
